Modern DevOps relies on automation, scalability, and resilience. When it comes to Kubernetes in the cloud, Amazon EKS (Elastic Kubernetes Service) simplifies cluster management — but manual setup can be tedious. That's where Terraform comes in.

In this guide, you'll learn how to deploy a production-ready EKS cluster with Terraform, including:

• Custom VPC, subnets, and routing

• IAM roles for EKS and worker nodes

• Add-ons like CoreDNS and EBS CSI Driver

• Cluster Autoscaler for dynamic scaling

• MySQL StatefulSet deployment with persistent storage

What You'll Learn

• By the end of this tutorial, you'll have an automated EKS infrastructure that can:
  Scale automatically based on workload demand

• Maintain high availability across multiple Availability Zones

• Use Terraform for repeatable and versioned deployments

• Deploy stateful applications with persistent volumes

Project Overview

We'll build a complete EKS environment with these components:

Architecture Overview

+-----------------------------+
|         AWS Cloud           |
|                             |
|   +---------------------+   |
|   |     EKS Cluster     |   |
|   |  (Control Plane)    |   |
|   +----------+----------+   |
|              |              |
|      +-------+--------+     |
|      |   Node Group   |     |
|      | (EC2 Workers)  |     |
|      +----------------+     |
|        ↑      ↑             |
|   Autoscaler  EBS Driver    |
+-----------------------------+

Prerequisites

Before you begin, ensure you have:

• AWS Account with appropriate permissions

• Terraform ≥ 1.0 installed

• AWS CLI configured (`aws configure`)

• kubectl installed

IAM user with admin or EKS-related permissions

Step-by-Step Setup

✅ Scalable — Cluster Autoscaler dynamically adjusts node count based on pod requirements

✅ Secure — Private subnets + IAM least-privilege roles protect your infrastructure
✅ Modular — Split configuration into modules for networking, IAM, and EKS for maintainability
✅ Production-ready — Includes monitoring, storage add-ons, and persistent volumes
✅ Cost-efficient — Nodes scale down when workload decreases

Step 1: Clone the Repository

Clone the source code from GitHub:

git clone https://github.com/Ankoay-Feno/kubernetes-autoscaling-aws.git
cd kubernetes-autoscaling-aws/iac

Step 2: Initialize Terraform

Initialize Terraform to download required providers:

terraform init

Step 3: Preview and Apply Changes

Review the infrastructure plan and deploy:

terraform plan
terraform apply --auto-approve

Note: The deployment takes approximately 10-15 minutes.

Terraform Outputs

After deployment, Terraform provides useful outputs:

Step 4: Configure kubectl

Once complete, configure kubectl to interact with your cluster:

$(terraform output -raw kubeconfig_update_command)

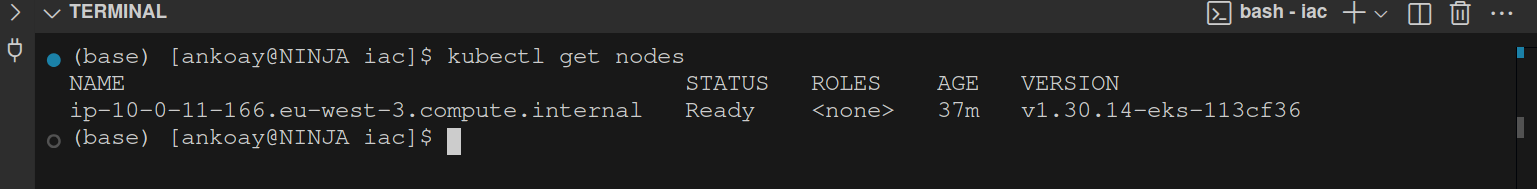

Verify the cluster nodes:

kubectl get nodes

Expected Output: You'll see a single node initially, as no workload has triggered autoscaling yet.

Now let's deploy a MySQL replication setup to demonstrate autoscaling.

Step 5: Create a StorageClass

Navigate to the MySQL configuration directory and create a StorageClass:

cd ../mysql-statefulset
kubectl apply -f 00-mysql-storageclass.yaml

Verify the StorageClass:

kubectl get storageclass
kubectl describe storageclass gp3

Step 6: Create ConfigMap

The ConfigMap contains initialization scripts for MySQL master and slave replicas:

kubectl apply -f 01-mysql-configmap.yaml

Verify the ConfigMap:

kubectl get configmap
kubectl describe configmap mysql

Step 7: Create Services

Create headless and NodePort services for MySQL:

kubectl apply -f 02-mysql-services.yaml

Verify the services:

kubectl get services
kubectl describe service mysql
kubectl describe service mysql-read

Step 8: Deploy MySQL StatefulSet

Now deploy the MySQL StatefulSet with 3 replicas (1 master + 2 slaves):

kubectl apply -f 03-mysql-statefulset.yaml

Verify the deployment:

kubectl get statefulset
kubectl describe statefulset mysql
kubectl get pods -w

Watch the Autoscaling in Action:

As the StatefulSet creates 3 pods, you'll notice the cluster autoscaler adding a second node automatically. The single node cannot handle the resource requirements of all 3 MySQL pods.

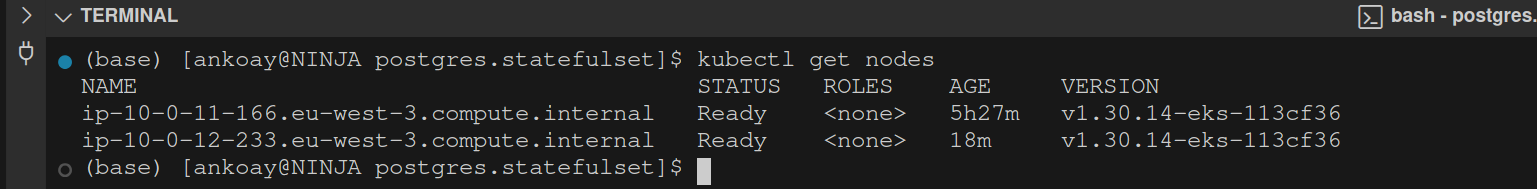

Check the scaled nodes:

kubectl get nodes

You should now see 2 nodes instead of 1!

Why This Setup Works

1. ✅ Scalable — Cluster Autoscaler dynamically adjusts node count based on pod requirements

2. ✅ Secure — Private subnets + IAM least-privilege roles protect your infrastructure

3. ✅ Modular — Split configuration into modules for networking, IAM, and EKS for maintainability

4. ✅ Production-ready — Includes monitoring, storage add-ons, and persistent volumes

5. ✅ Cost-efficient — Nodes scale down when workload decreases

Cleanup

# Delete Kubernetes resources first
kubectl delete -f 03-mysql-statefulset.yaml
kubectl delete -f 02-mysql-services.yaml
kubectl delete -f 01-mysql-configmap.yaml
kubectl delete -f 00-mysql-storageclass.yaml

# Then destroy Terraform infrastructure
cd ../iac
terraform destroy --auto-approve

Happy Terraforming!

Repository: github repository
Author: Ankoay-Feno
